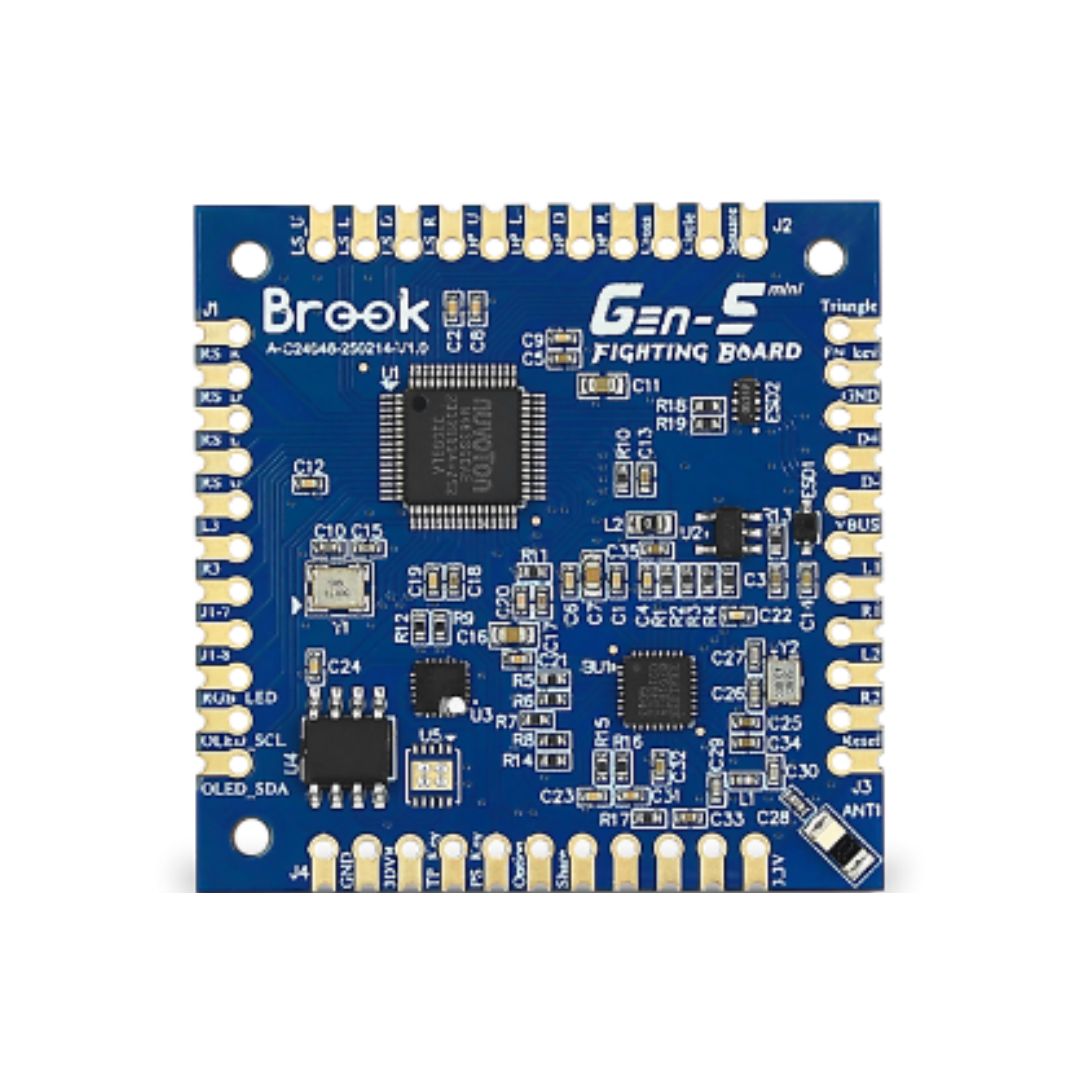

The Brook Gen-5 Mini Fighting Board brings powerful cross-gen arcade controller performance in a compact form factor. With support for PS5, PS4, Switch 2, Switch, and PC, this mini board is perfect for custom builds where space is limited.
Measuring only 40.64 × 40.64 mm and weighing just 4g, the Gen-5 Mini is ideal for compact fight sticks, leverless controllers, and advanced DIY arcade projects. It supports important competitive features such as SOCD modes, ultra-low latency, Turbo, Touchpad emulation, RGB lighting, OLED display support, and firmware updates.
This model is recommended for experienced builders because it requires soldering or a breakout board for installation. Brook also notes that the Gen-5 Mini requires the PS5 Bluetooth setting to be turned off for proper use unless an additional Bluetooth module is installed.
Key Features
✅ Compact mini PCB design
✅ Supports PS5 / PS4 / Switch 2 / Switch / PC
✅ Ultra-low latency response
✅ SOCD mode switching
✅ RGB-LED lighting support
✅ OLED display support
✅ Touchpad simulation
✅ Turbo function
✅ LS / DPAD / RS direction control
✅ Firmware update support
✅ Ideal for professional and compact DIY builds
Specifications
Supported Platforms: PS5 / PS4 / Switch 2 / Switch / PC
Size: 40.64 × 40.64 mm
Weight: 4g
Installation: Requires soldering or use of a breakout board
Included: Gen-5 Mini Fighting Board × 1
Important Note
For proper use on PS5, Brook recommends turning off PS5 Bluetooth settings unless an additional Bluetooth module is installed.
Recommended Use
Best for:
Compact arcade stick builds, leverless controllers, professional DIY projects, advanced custom controller builds.
